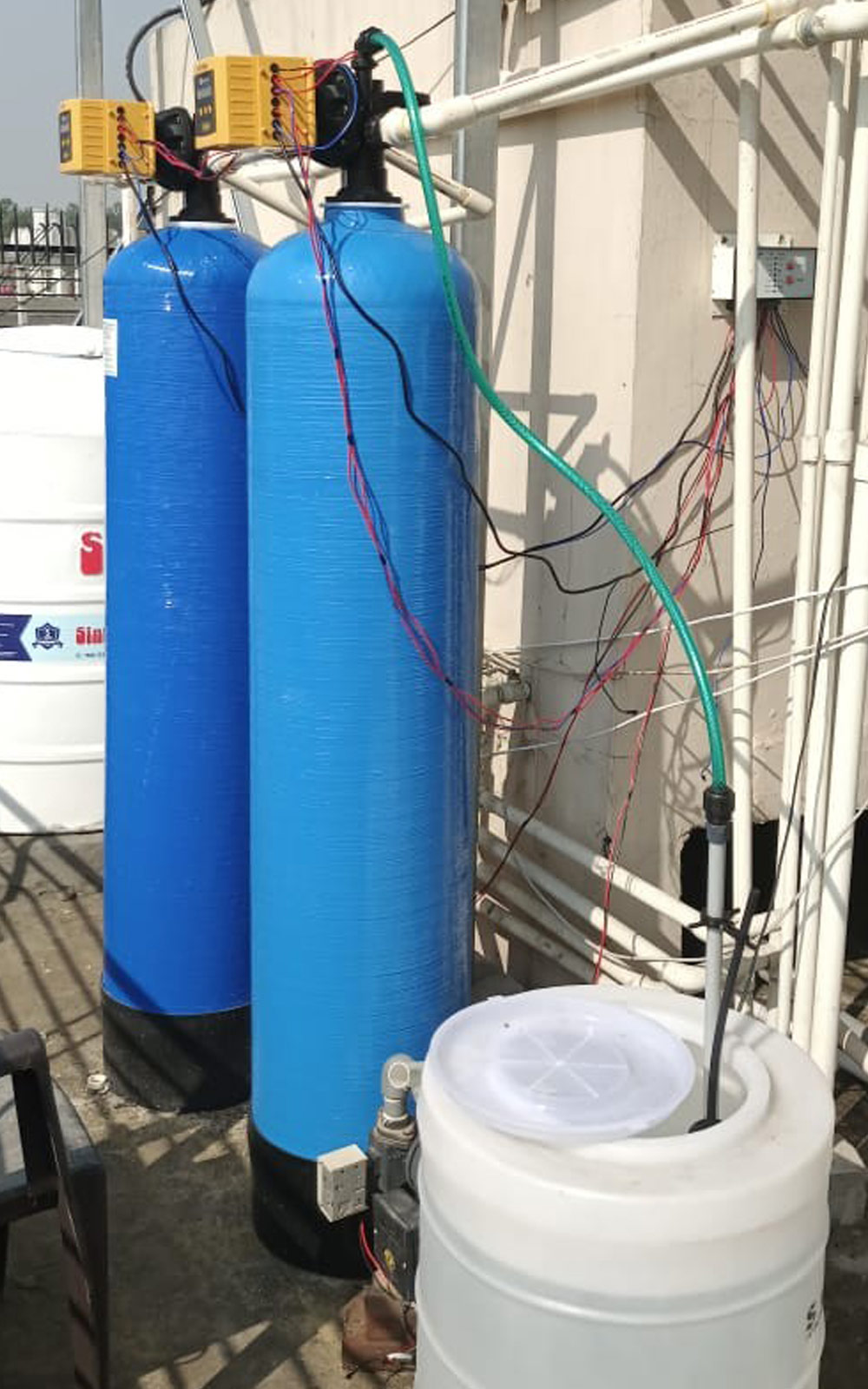

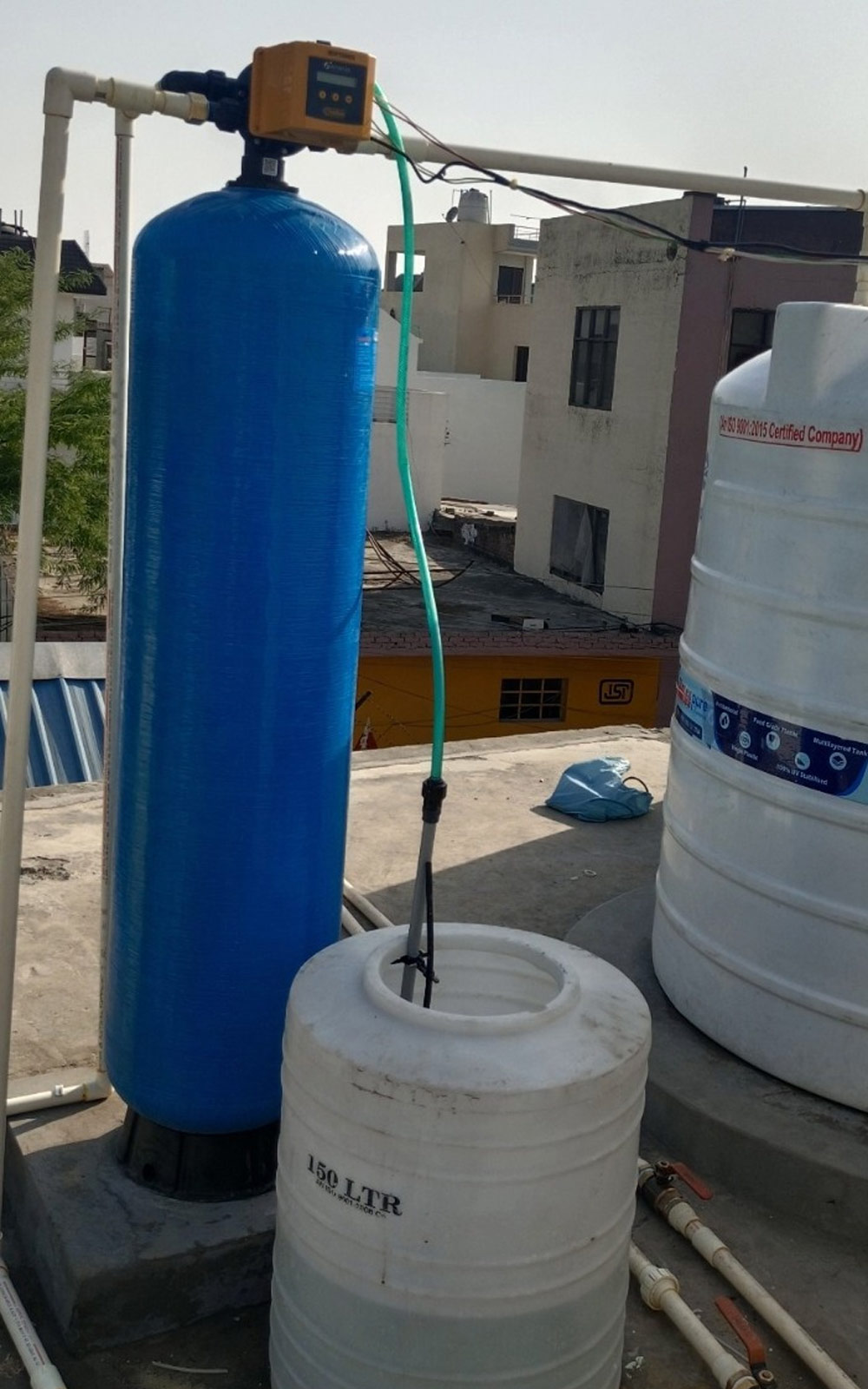

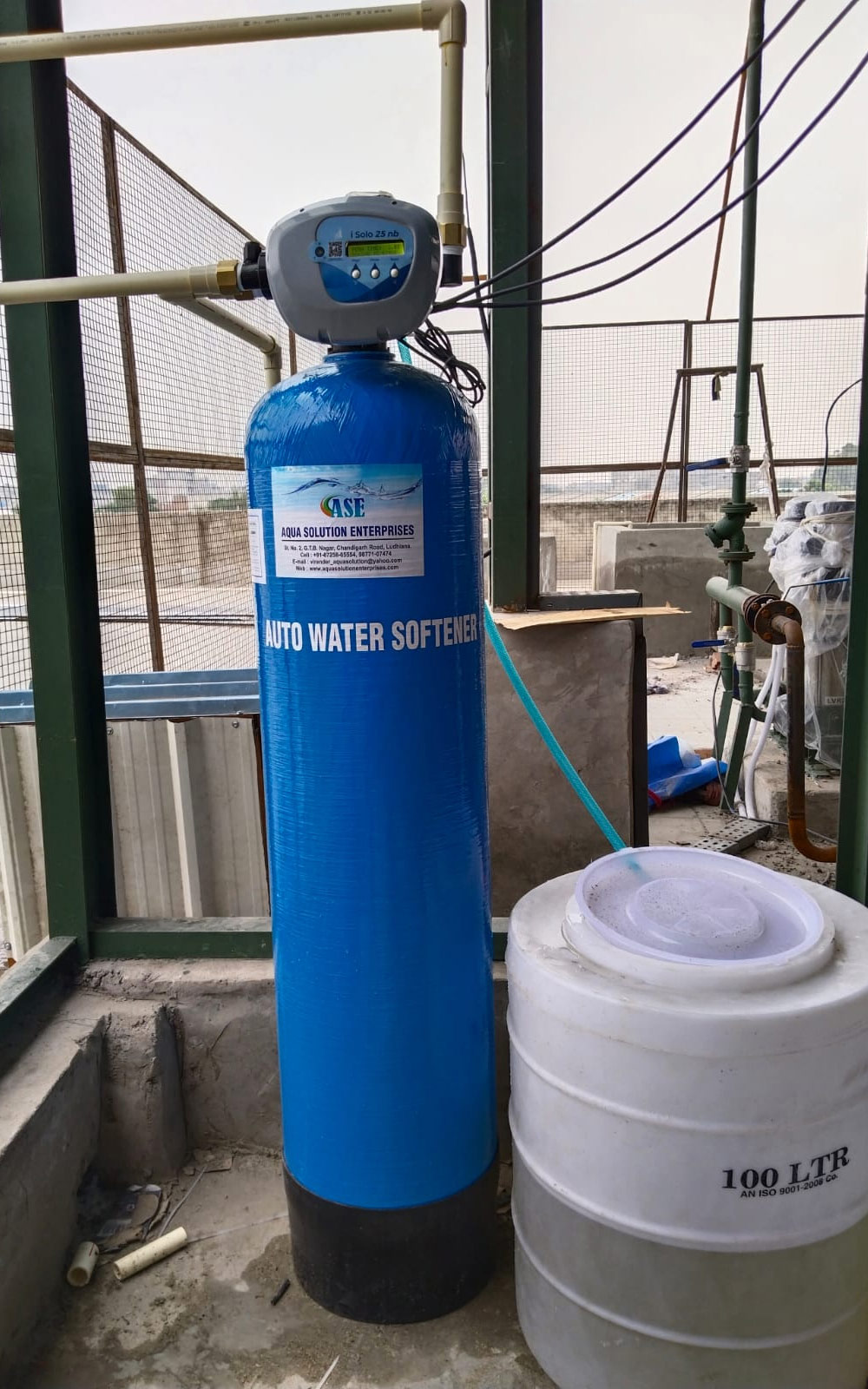

An automatic water softener plant is a fully automated system designed to remove hardness-causing minerals like calcium and magnesium from water. It ensures consistent soft water supply without manual intervention.

1. Capacity Range:

Flow Rate: 500 LPH to 100,000 LPH (customizable as per requirement)

2. Design & Components:

• Vessel: FRP / MSRL / Stainless Steel (SS304/SS316)
• Control Valve: Multi-port Automatic Control Valve (Timer or Flow-based)
• Resin Type: High-capacity Ion Exchange Resin (cationic, food-grade)
• Salt Tank: PE/HDPE Brine Tank with Salt Grid
• Piping & Fittings: uPVC / SS / GI as per designBase Media: Graded Quartz Sand / Pebbles
• Pressure Gauge: Glycerin-filled pressure gauges
• Drain Line Flow Control (DLFC) and Inlet/Outlet Distributors

3. Operating Conditions:

• Working Pressure: 2 – 4.5 kg/cm²
• Inlet Hardness: Up to 1000 PPM (as CaCO₃)
• Output Hardness: < 5 PPM
• Operating Temperature: 5°C – 45°C
